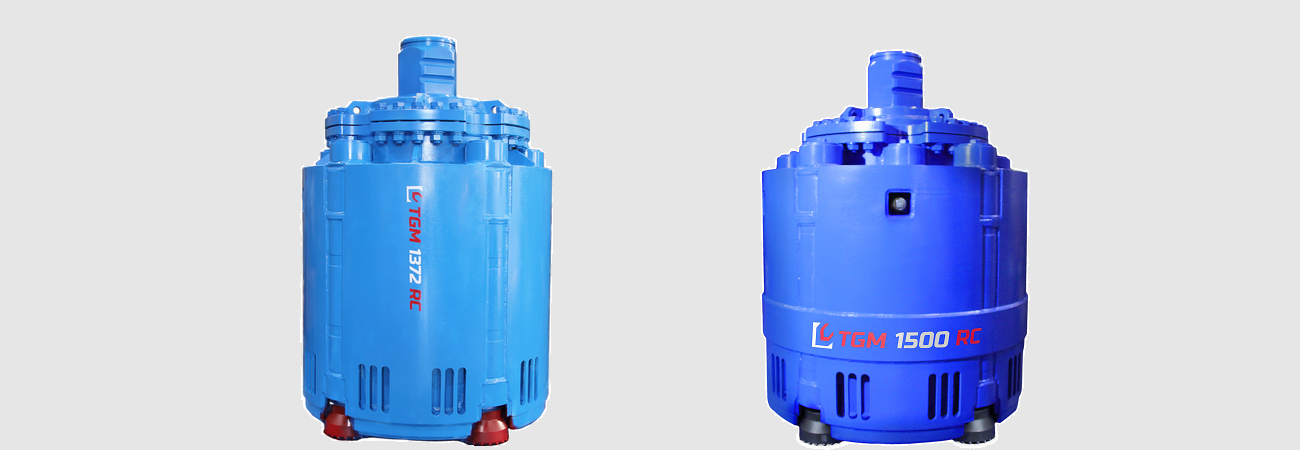

TGM – Top Drill’s cluster drill – consists of a robust canister in which Top Drill TM hammers are fitted.
These hammers utilize specially designed drill bits. Hammers fitted with bits rotate with the canister.
TGM HAMMER (TM80) Specification
| Model | No. of Hammers | Working Diameter | Total Weight | Air Requirements | |||
| MM | INCH | KG | LBS | SCFM | M³/MIN | ||
| TGM 914 | 5 | 914 | 36.0 | 3680 | 8113 | 2550 | 72.2 |
| TGM 1016 | 6 | 1016 | 40.0 | 4480 | 9877 | 3060 | 86.6 |
| TGM 1060 | 6 | 1060 | 41.7 | 4760 | 10494 | 3060 | 86.6 |
| TGM 1219 | 7 | 1219 | 48.0 | 5680 | 12522 | 3570 | 101.1 |
| TGM 1372 | 9 | 1372 | 54.0 | 6730 | 14837 | 4590 | 130.0 |
| TGM 1500 | 11 | 1500 | 59.1 | 8074 | 17800 | 5610 | 158.9 |
| TGM 1676 | 13 | 1676 | 66.0 | 9690 | 21363 | 6630 | 187.7 |
* COMPOSITION: SPECIALLY DESIGNED TM80 HAMMER AND BIT
* AIR REQUIREMENTS PER HAMMER - 510 CFM@150 PSI OR 695 CFM@200 PSI
* Other size of TGM Hammer is available upon customer’s request.
